  1. Insert Acronis Bootable CD/DVD and select Acronis True Image 2016 After while computer will boot up
    • Insert Acronis Bootable CD/DVD and select Acronis True Image 2016

    • After while computer will boot up

  2. Select menu "Network Options" Check that network cable is connected Setup unique IP address in same network as backup server
    • Select menu "Network Options"

    • Check that network cable is connected

    • Setup unique IP address in same network as backup server

    • IP address MUST NOT COLLIDE with IP addresses of existing computers

  3. Select "Recover" procedure Browse for backup - this is located on your backup ftp server Create new ftp connection

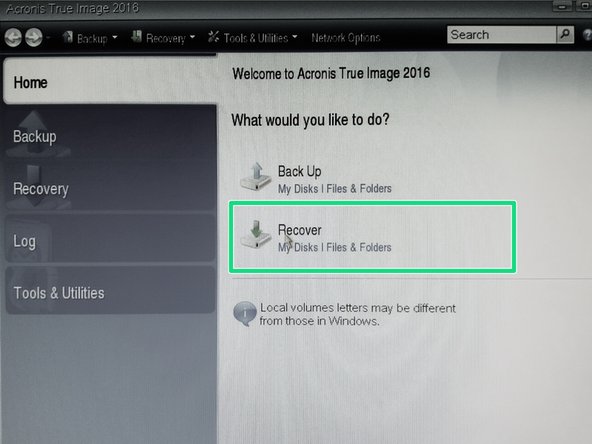

    • Select "Recover" procedure

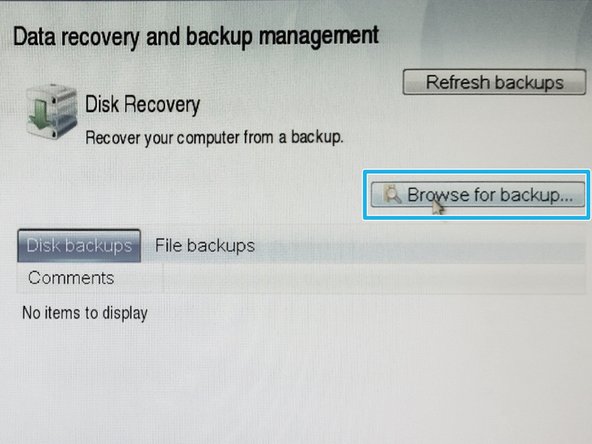

    • Browse for backup - this is located on your backup ftp server

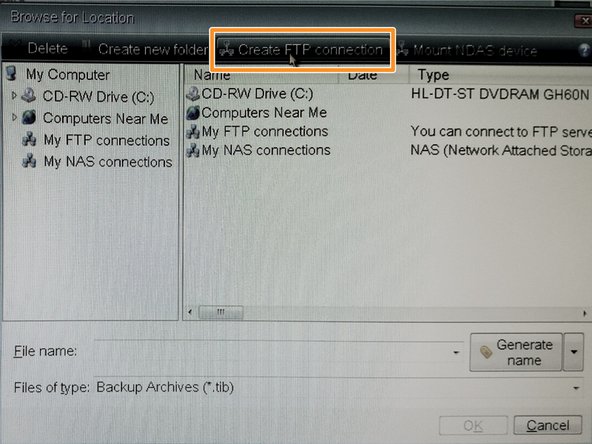

    • Create new ftp connection

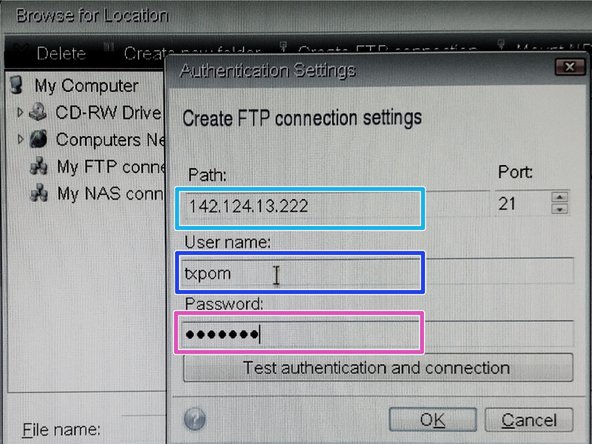

  4. Enter following information and hit OK ftp server IP address User name
    • Enter following information and hit OK

    • ftp server IP address

    • User name

    • Password

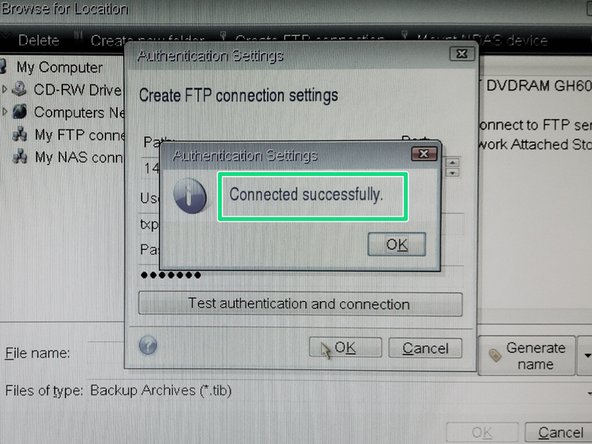

    • After creating new ftp connection you can browse server backup directories

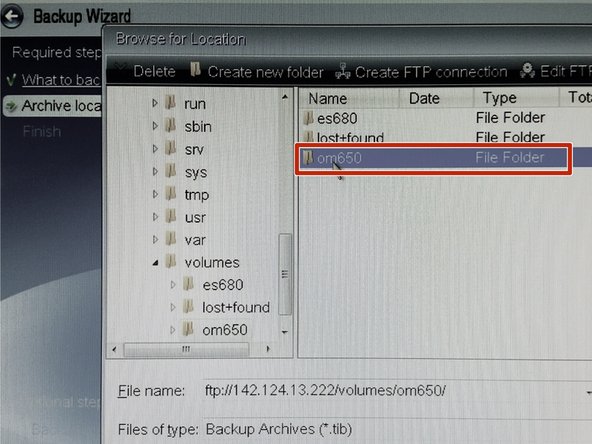

    • Locate directory where backups are located

    • Bohemia Market data storage is located at /volumes/om650

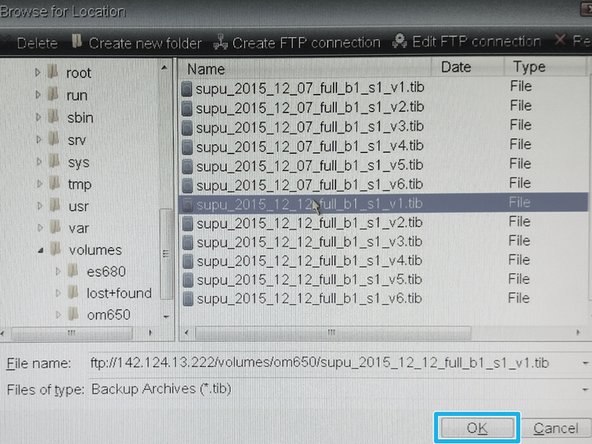

  5. Locate backup image for given computer Click by "Right Mouse Button" over the image and select "Recover" Click by "Right Mouse Button" over the image and select "Recover"
    • Locate backup image for given computer

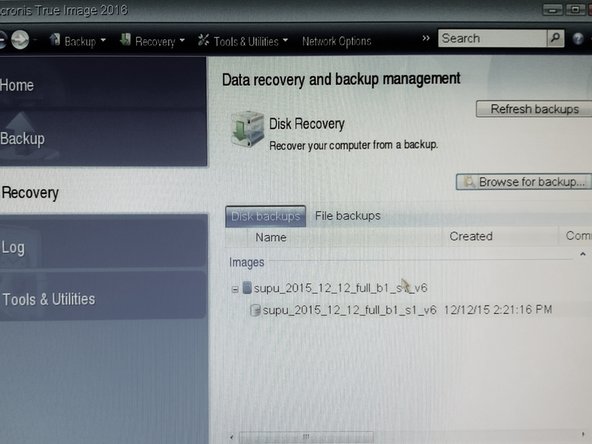

    • Click by "Right Mouse Button" over the image and select "Recover"

  6. Select Recovery method - "Recover whole disk and partitions" Select disk to recover Verify target disk and hit "Next" button

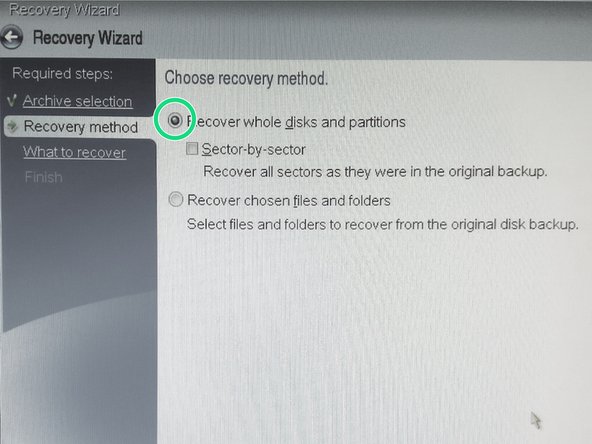

    • Select Recovery method - "Recover whole disk and partitions"

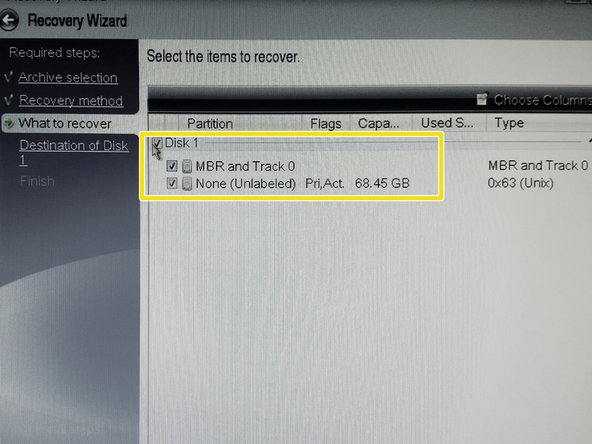

    • Select disk to recover

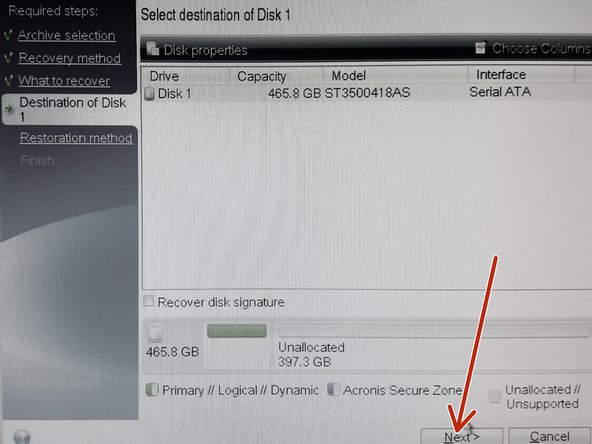

    • Verify target disk and hit "Next" button

  7. All data on target disk will be destroyed. Select restoration method "Copy partitions without changes" After recovery setup summary is shown - hit "Proceed" button to start recovery process.

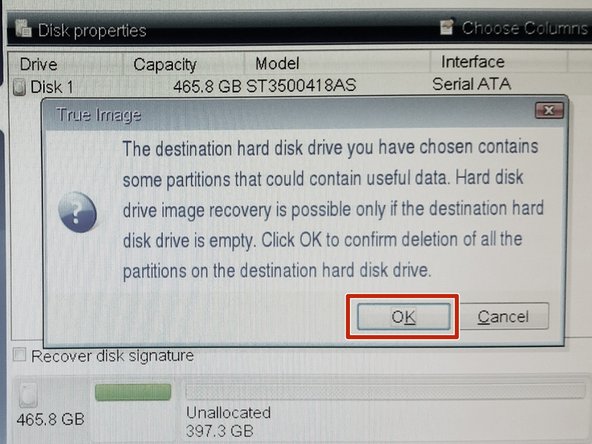

    • All data on target disk will be destroyed.

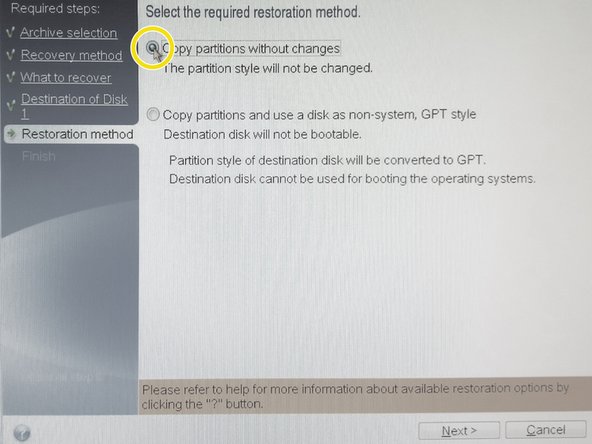

    • Select restoration method "Copy partitions without changes"

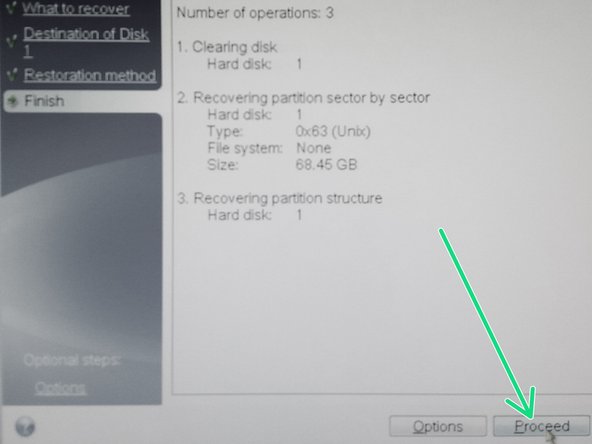

    • After recovery setup summary is shown - hit "Proceed" button to start recovery process.

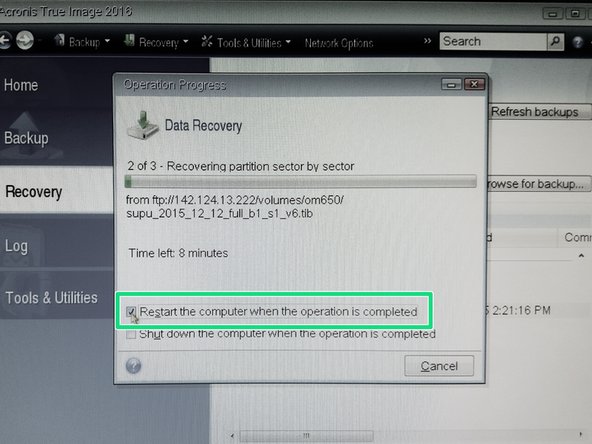

  8. The computer will be restarted after restoration
    • The computer will be restarted after restoration
