Introduction

This is fairly advance way of backing up engineering station.

Tools

Parts

No parts specified.

  1. Insert bootable CD and interrupt a booting sequence by pressing "ESC" key
    • Insert bootable CD and interrupt a booting sequence by pressing "ESC" key

    • On prompt type:

    • boot IDE

    • You will asked „Interact with IPL (Y,N)“. Answer with N.

  2. Configure network card located on the motherboard named eth0 by following command
    • Configure network card located on the motherboard named eth0 by following command

    • ifconfig eth0 142.124.13.200

    • IP address MUST NOT COLLIDE with IP addresses of existing computers

    • Test if ftp server can be reached over network by ping command

    • ping 142.124.13.222

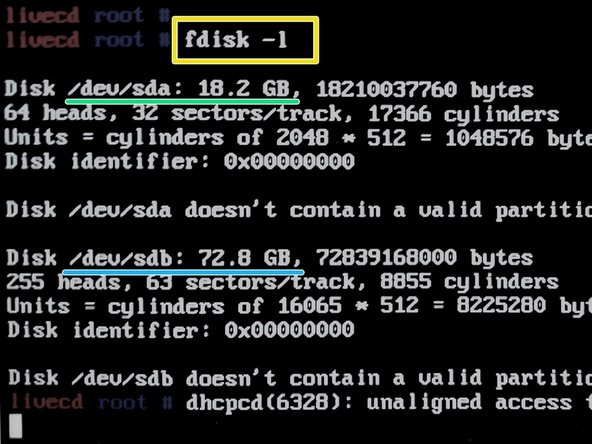

  3. Verify by fdisk command if all hard-drives are visible. Some ES680 station might have two disks.
    • Verify by fdisk command if all hard-drives are visible. Some ES680 station might have two disks.

    • fdisk -l

    • There is a disk /dev/sda with capacity 18.2 GB

    • There is a disk /dev/sdb with capacity 72.8 GB

    • the parameter above is lower case L

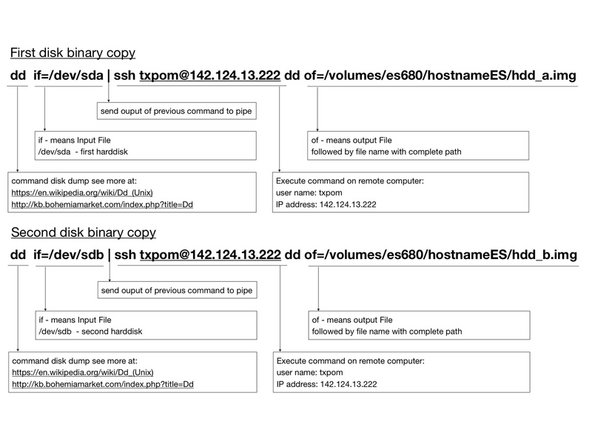

  4. Copy content of the disk using dd command to the server.
    • Copy content of the disk using dd command to the server.
