Update backup command

Minor Versionm

by Petr Roupec

  1. Login to the TXP Computer Login to the TXP Computer
    • Login to the TXP Computer

  2. Evaluate status of TXP OM650 status prior shutdown of the computer. In case that power station is in operation make sure redundant computer is available
    • Evaluate status of TXP OM650 status prior shutdown of the computer. In case that power station is in operation make sure redundant computer is available

  3. Stop OM650 system by the command Om.Stop
    • Stop OM650 system by the command

    • Om.Stop

    • Wait until process complete!

  4. Login as a super user
    • Login as a super user

    • su

    • Shutdown computer

    • init 0

  5. When shutdown is completed message is shown. Switch OFF the computer and follow instructions on hardware connections
    • When shutdown is completed message is shown.

    • Switch OFF the computer and follow instructions on hardware connections

    • Enter into BIOS by pressing DEL key right after computer start

  6. To enter BIOS pres DEL Key right after computer start
    • To enter BIOS pres DEL Key right after computer start

    • By pressing left arrow go to the Boot Section

    • Enter boot setting configuration

  7. Scroll down and enable Boot from LAN Save Changes and Reboot computer is required prior changing boot priority devices
    • Scroll down and enable Boot from LAN

    • Save Changes and Reboot computer is required prior changing boot priority devices

  8. Save changes and leave BIOS
    • Save changes and leave BIOS

  9. To enter BIOS pres DEL Key right after computer start Change booting priority
    • To enter BIOS pres DEL Key right after computer start

    • Change booting priority

  10. Save changes and leave BIOS
    • Save changes and leave BIOS

  11. Prior to the backup Terminal Bus to be disconnected from the computer
    • Prior to the backup Terminal Bus to be disconnected from the computer

    • Prior to the backup Plant Bus to be disconnected from the computer

    • Terminal bus is connected to LAN2

    • Plant Bus is connected to CP1613 card

  12. Connect cable going to Bohemia Market Rescue & Backup Server to the LAN 2 port
    • Connect cable going to Bohemia Market Rescue & Backup Server to the LAN 2 port

  13. After switching on OMLEX computer with LAN booting enabled it start every LAN card After a while DHCP requests are being sent to the network
    • After switching on OMLEX computer with LAN booting enabled it start every LAN card

    • After a while DHCP requests are being sent to the network

  14. After a while IP address will be provided by the DHCP server Press F8 to connect with Bohemia Market Maintenance Server
    • After a while IP address will be provided by the DHCP server

    • Press F8 to connect with Bohemia Market Maintenance Server

  15. For purposes of OMLEX backup chose the Bohemia Market Rescue and backup server
    • For purposes of OMLEX backup chose the Bohemia Market Rescue and backup server

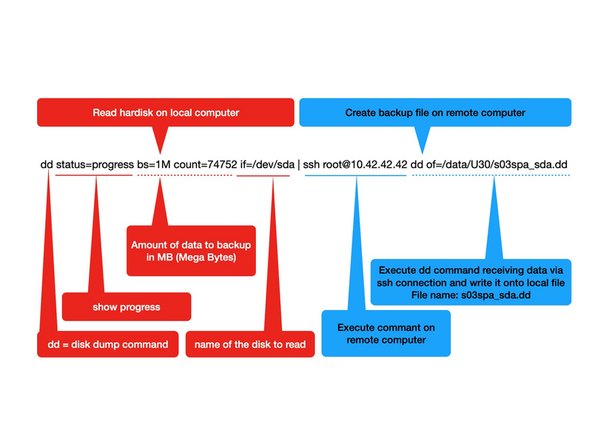

  16. For clarity command is shown on several lines - please type all on one lineBackup is made as set of command on command line
    • For clarity command is shown on several lines - please type all on one lineBackup is made as set of command on command line

    • dd status=progress if=/dev/sda | root@10.42.42.42 dd of=/data/U30/ s03spa_sda.dd

    • Second disk backup command is; dd status=progress if=/dev/sdb | root@10.42.42.42 dd of=/data/U30/ s03spa_sdb.dd

    • Server require password - this is site specific and will be provided during commissioning

  17. Once connected to BM Backup Server answer the question in regards of the certificates: YES After establishing connection you will be asked for Backup Server Password

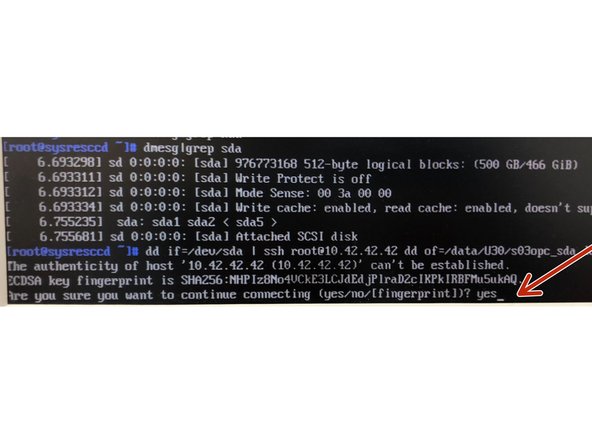

    • Once connected to BM Backup Server answer the question in regards of the certificates: YES

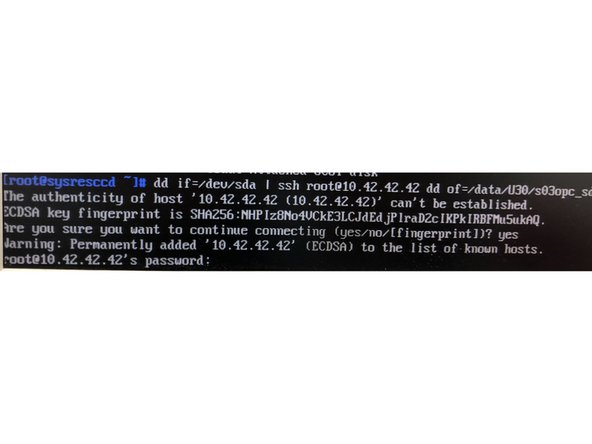

    • After establishing connection you will be asked for Backup Server Password

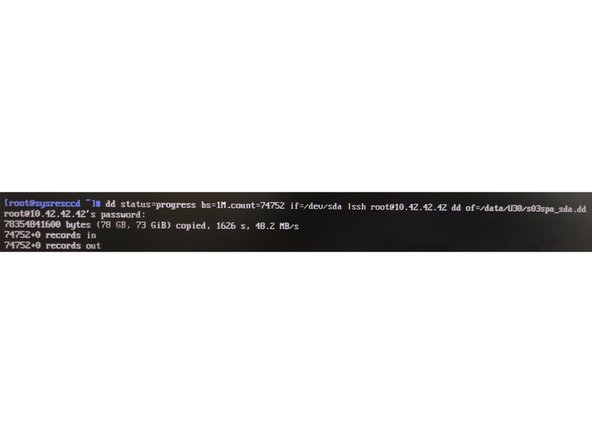

  18. After a while backup will complete
    • After a while backup will complete

  19. When shutdown is completed message is shown. Switch off the computer Connect cables and start the computer

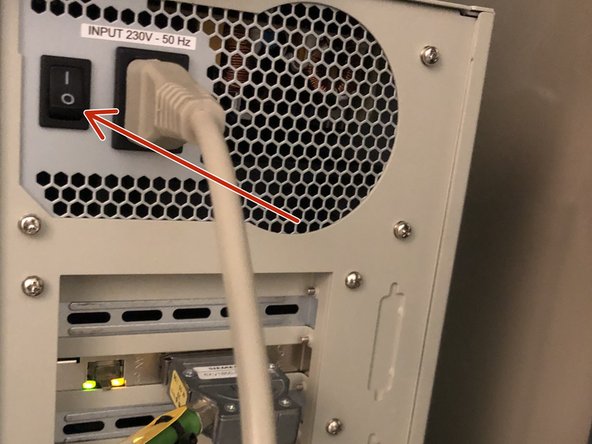

    • When shutdown is completed message is shown. Switch off the computer

    • Connect cables and start the computer
